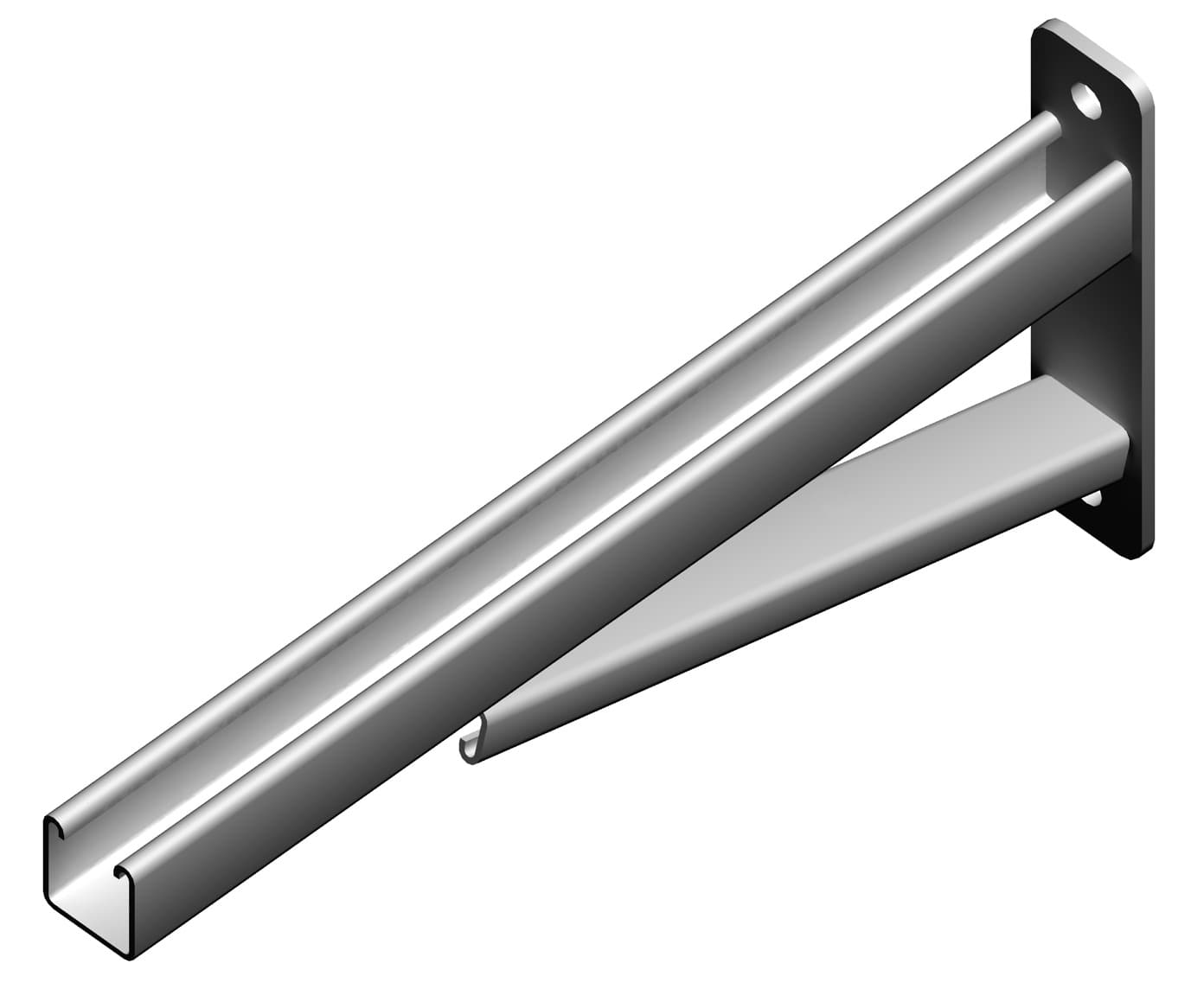

Braced Cantilever Brackets
| Material | : Mild Steel & Stainless Steel |

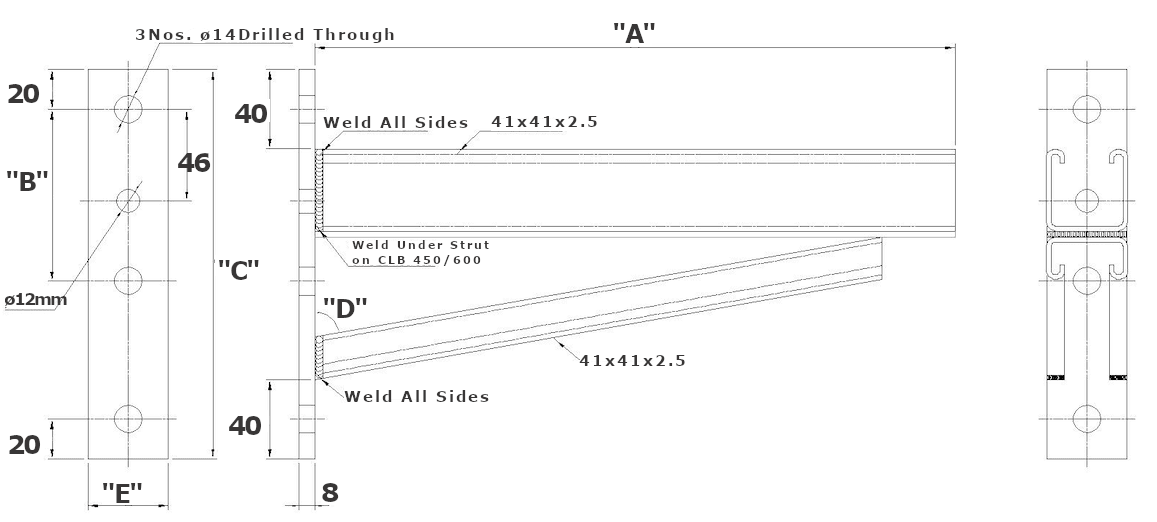

| Part Number | Length "A" (mm) | B (mm) | C (mm) | D° (mm) | E (mm) | Weight (kg) | Finish |
|---|---|---|---|---|---|---|---|
| SCLB320H | 320 | 86 | 195 | 80 | 40 | 2.00 | HDG |
| SCLB470H | 470 | 86 | 195 | 80 | 40 | 2.45 | HDG |
| SCLB635H | 635 | 112 | 245 | 75 | 40 | 3.20 | HDG |
| SCLB780H | 780 | 112 | 245 | 75 | 40 | 3.70 | HDG |
| SCLB935H | 935 | 112 | 245 | 75 | 40 | 4.10 | HDG |
| SCLB320S | 320 | 86 | 195 | 80 | 40 | 2.00 | SS316 |
| SCLB470S | 470 | 86 | 195 | 80 | 40 | 2.45 | SS316 |
| SCLB635S | 635 | 112 | 245 | 75 | 40 | 3.20 | SS316 |
| SCLB780S | 780 | 112 | 245 | 75 | 40 | 3.70 | SS316 |
