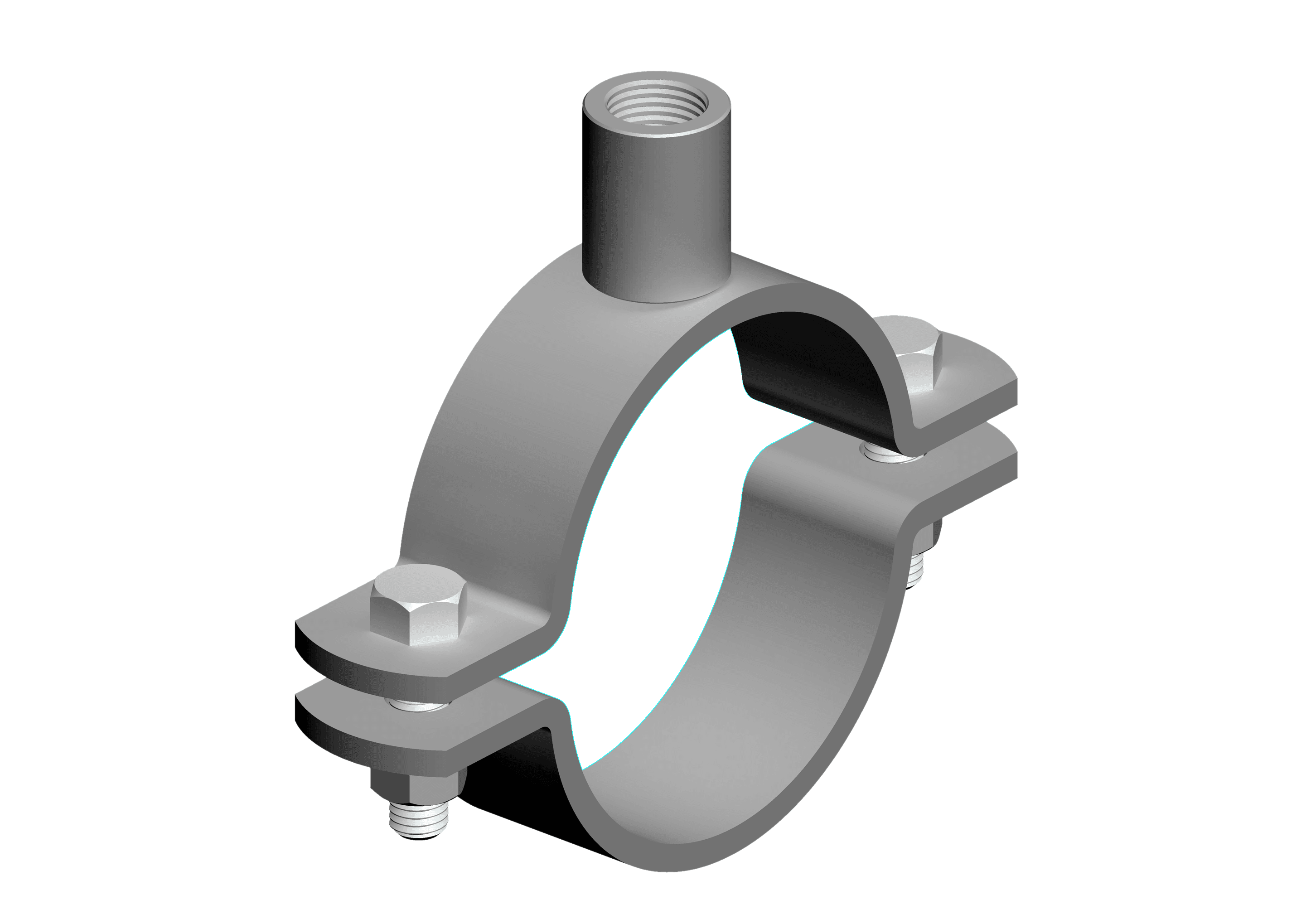

CU Nut Clamp
| Material | : Mild Steel |
| Finish | : Powder Coated Brown |
| Part Number | Pipe OD (mm) | Nut Size | Width x Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| S7-015CU | 12.7 | M10 | 20 x 3 | 0.10 |
| S7-020CU | 19 | M10 | 20 x 3 | 0.10 |
| S7-025CU | 25.4 | M10 | 20 x 3 | 0.12 |
| S7-032CU | 31.8 | M10 | 20 x 3 | 0.13 |
| S7-040CU | 38.1 | M10 | 20 x 3 | 0.13 |
| S7-050CU | 51.2 | M10 | 20 x 3 | 0.16 |
| S7-065CU | 63.5 | M10 | 20 x 3 | 0.16 |
| S7-080CU | 76.2 | M10 | 20 x 3 | 0.17 |
| S7-100CU | 101.6 | M10/M12 | 25 x 3 | 0.22 |
| S7-125CU | 127 | M10/M12 | 25 x 3 | 0.31 |
| S7-150CU | 152.4 | M10/M12 | 25 x 3 | 0.35 |
